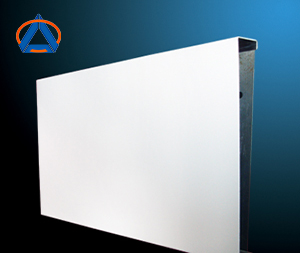

C-type Aluminum ceiling panel with PVDF or powder coated is a kind of
high-grade architectural ornament material for buildings like business center,
subway station, airport, train station and so on.
C-type Aluminum ceiling panel with PVDF or powder coated can keep more than
15 years, and it can be processed into many different shapes by your design.
C-type Aluminum ceiling panel usually used in public place, because you can
fix air-condition upside of the C-type aluminum ceiling without effect.
Technical Specification:
Coating: PVDF or Powder coated,
Color: Follow your requirements,
Thickness:2.0~4.0mm,or according to your requirements,
Size: Follow your design (length less than 3000mm).
No. | item | Performance |
1 | Appearance quality | No flow lines, no streaks, no blisters, no foreign substance, no other surface imperfections |
2 | Film thickness | Average: 48umMin. 41um |
3 | Dry-fil hardness | ≥3H |
4 | Gloss value | Gloss value: 34.2~39.1; Average: 37.2 |
5 | Impact resistance | 50kg·m, no removal of film from substrate |
6 | Abrasion resistance | 5.3L/um |
7 | Film adhesion | Drying adhesion | Grade 0 |
Wet adhesion | Grade 0 |
Boiling water adhesion | Grade 0 |
8 | Chemical resistance | Hydrochloric acid resistance | No change |
Nitric acid resistance | No changes such as blistering etc.Δ E=0.75 |
Mortar resistance | No change |
Solvent resistance | No base exposed |
9 | Salt spray resistance (4000h) | Grade 1 |
10 | Humidity resistance | Grade 1 |
11 | Artificial weathering (4000) | Color retention | 1.31 |
Gloss retention | 85% |
Others | Grade 0 |
